Editing a node's Script

Every node has a Script property: the node's implementation, shown as editable JavaScript. Editing it changes what that node does — for that one node instance only.

Select a node and find Script under General in its Properties panel, then press Edit.

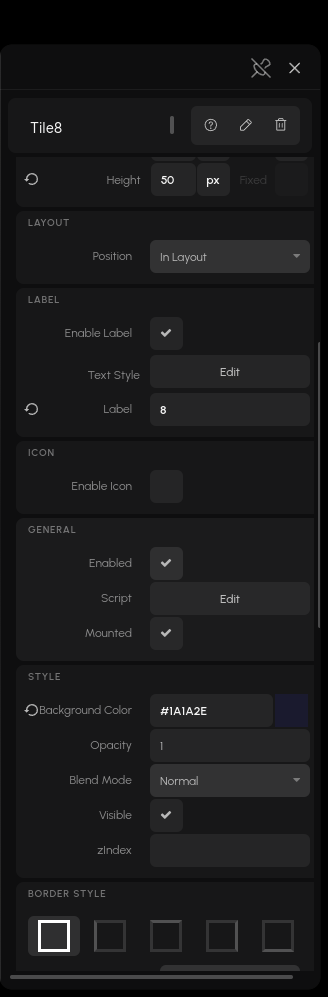

The Script row in a node's Properties panel

The code editor opens over the preview. What you see is the node's definition as source: its initialize, input setters, output getters and methods. Edit a function, and your version replaces it on that instance. Other copies of the node, and other projects, are untouched.

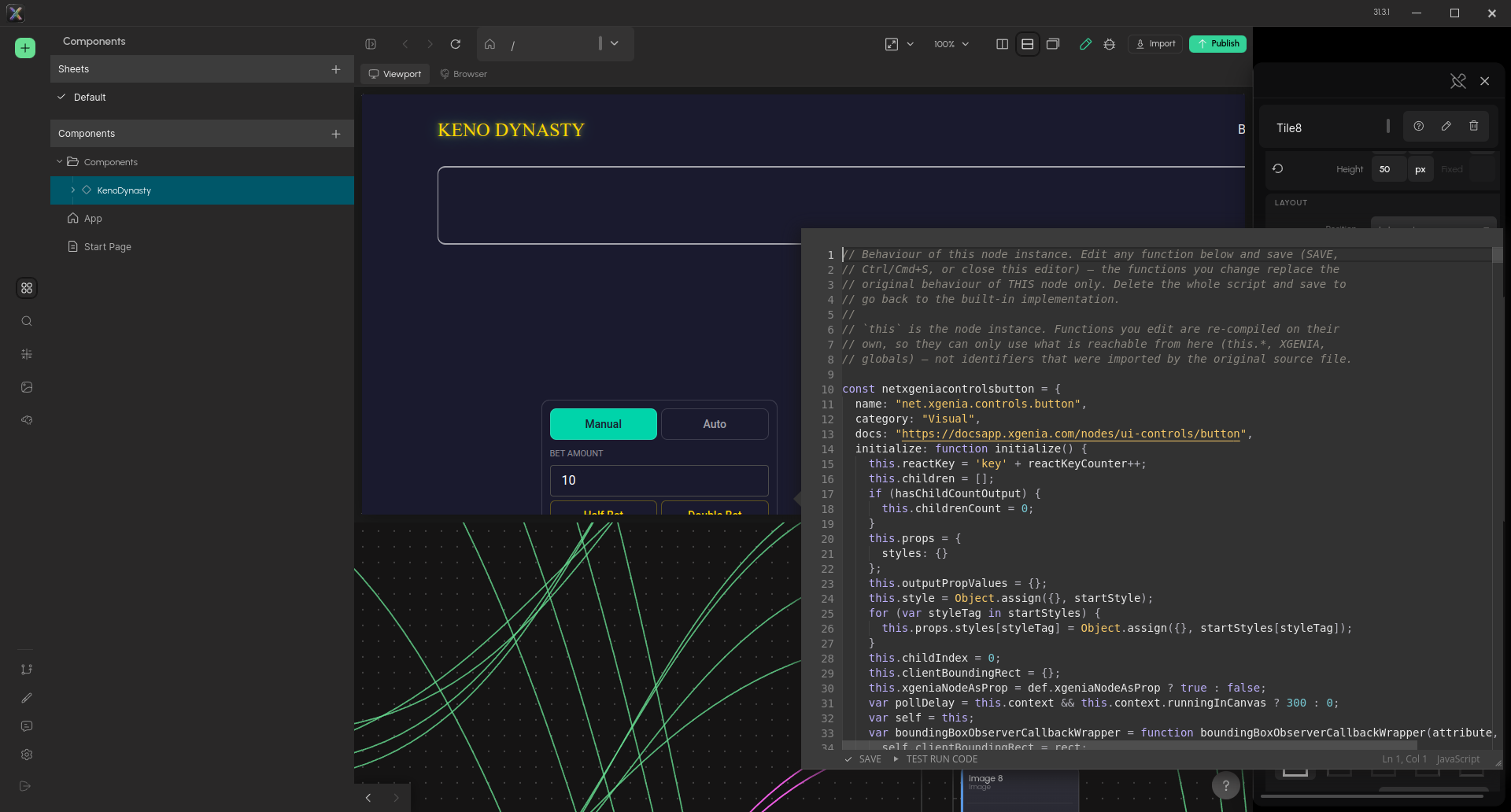

The Script editor open for a Button node

The Script editor. SAVE (or Ctrl+S) applies your changes; TEST RUN CODE runs them once. Closing the editor also saves.

To go back to the built-in behaviour, delete the whole script and save.

What you can override​

Caninitialize, input setters, output getters, methods.
CannotHow a visual node draws itself — its React component and default CSS are not part of the script.

So on a visual node you can change what its inputs do and what its outputs report, but not its rendering.

How your edits are applied​

The editor compares your script to the built-in one function by function, and only swaps in the functions you actually changed. Practical consequences:

  • Reformatting the script is not an edit — whitespace changes are ignored (template literals excepted).
  • Untouched functions keep the original implementation. That's deliberate: the originals carry internal context your pasted-back source can't, so replacing them for no reason would break the node.
  • Renaming a function counts as deleting one and adding another.
  • Edited functions are compiled on their own, so they can only use what is reachable from the node (this, XGENIA, globals) — not identifiers the original source file imported.

The Script property is part of the project — overrides travel with commits and ship with the app.

In a published game​

Two differences from the editor:

  • The whole script applies, guarded. Published bundles are minified, so per-function comparison isn't possible; your script is applied in full. Each overridden member is guarded — the first time one throws, that member permanently falls back to the built-in implementation and a console warning names the node.
  • Server-side maths ignores overrides. A component deployed to RGS is generated from the node type, so a Script override inside a deployed Maths Component never reaches the server. If the behaviour must run on the backend, change the graph instead.

If an override silently does nothing​

Declare the override inside the script rather than patching it on from other code — node methods live on a non-writable prototype, so an assignment from outside is ignored.
