Condition

This node evaluates a boolean condition and routes flow accordingly.

The Condition node is similar to the If node but with slightly different behavior regarding evaluation timing.

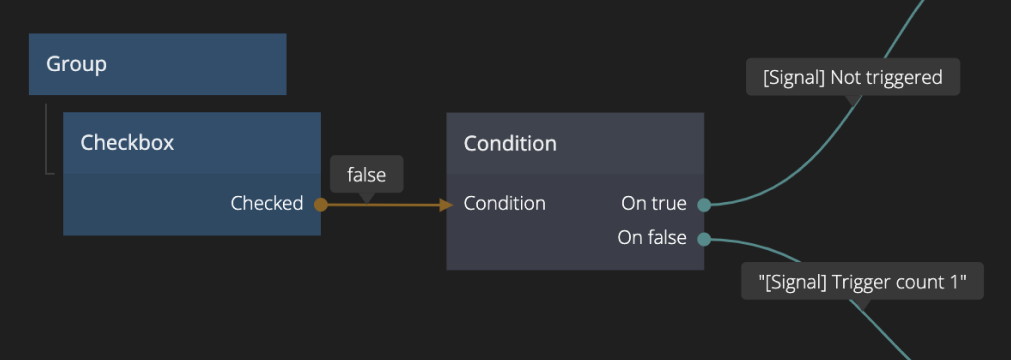

The Condition node checks a boolean input. It can evaluate immediately when the input changes (reactive) or wait for a signal (imperative). It provides separate signal outputs for True and False states.

Inputs

General

Data	Description
Condition	The boolean value to evaluate.

Actions

Signal	Description
Evaluate	Manually triggers the evaluation. If this input is connected, the node waits for this signal. If disconnected, the node evaluates immediately when Condition changes.

Outputs

Events

Signal	Description
On True	Triggered if the condition is true.
On False	Triggered if the condition is false.

Booleans

Data	Description
Is True	Boolean value of the condition.
Is False	Boolean value of the inverse condition (!condition).

Usage

Reactive vs. Manual

1. Reactive (Default): Leave Evaluate disconnected. Whenever the Condition input changes (e.g., a variable updates), the node immediately fires On True or On False.

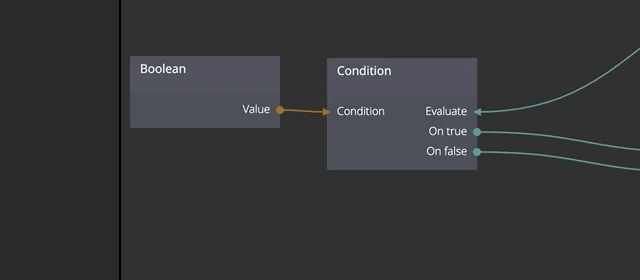

2. Manual: Connect a signal to Evaluate. The node ignores changes to Condition until Evaluate is triggered. This behaves exactly like the If node.

Example Use Cases

1. Game Over Check (Reactive): Connect Health <= 0 to Condition. As soon as health drops, On True fires "Game Over".
2. Form Submit (Manual): Connect Is Valid to Condition and "Submit Button" to Evaluate. Only checks validity when button is clicked.

Detailed Behavior

• Dual Mode: The behavior changes based on whether the Evaluate port has a connection. This makes it more versatile than the standard If node.
• Outputs: Provides both signal and boolean data outputs for convenience.

Troubleshooting

• Unexpected Firing: If Evaluate is empty, the node fires on every data change. If you only want it to fire once or on command, connect the Evaluate input.
