Inverter

This node inverts a boolean value (NOT operation).

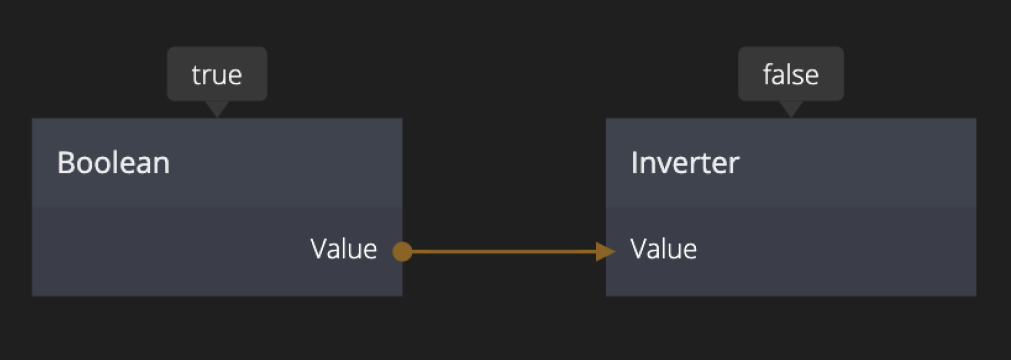

The Inverter node flips true to false and false to true.

The Inverter node performs a logical NOT operation. It takes a boolean input and outputs its opposite. It provides both a boolean data output and signal outputs for the inverted result.

Inputs

General

Data	Description
Value	The boolean value to invert.

Control

Signal	Description
Do	Triggers the evaluation. The logic is executed only when this signal is received.

Outputs

Data

Data	Description
Result	The inverted boolean value (!Value).

Signals

Signal	Description
True Condition	Triggered if the inverted result is true (i.e., input was false).
False Condition	Triggered if the inverted result is false (i.e., input was true).

Usage

Use this node to toggle logic or check for the absence of a condition.

Example Use Cases

1. Toggle State: If Is Visible is true, Inverter makes it false (Hide).
2. Validation: Check if a field is not empty.
   • IsEmpty -> Inverter -> IsNotEmpty.
3. Disable Button: Bind Is Loading to Inverter, then to Button Enabled. (If loading, enabled is false).

Detailed Behavior

1. Null Safety: If the input is undefined, the result is undefined.
2. Signal Logic:
   • Input true -> Result false -> Fires False Condition.
   • Input false -> Result true -> Fires True Condition.

Troubleshooting

• Confusion: Remember the signals refer to the Result, not the Input. "True Condition" means "The result is true" (so the input was false).
