Checkbox
This node places a customizable checkbox in the visual tree.

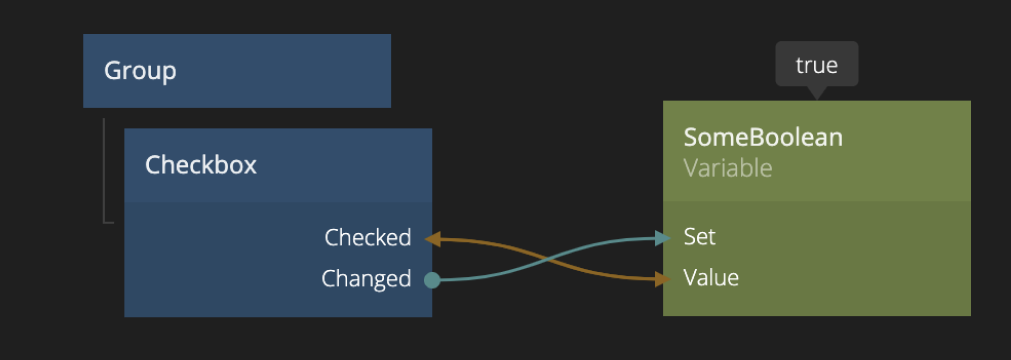

The checkbox will flip its state when clicked and its Checked property can be connected to a data source, such as a variable or object.
This control contains all logic such as accessibility etc. It can be styled in via it's properties, or you can use it only for the logic and create your own checkbox component in your own design system.
Inputs
The main input of the Checkbox node is the Checked input:
| Data | Description |
|---|---|
| Checked | A boolean setting the checkbox in "checked" or "unchecked" state. This is the value of the checkbox and can be connected to a data source. |
| Background Color | The background color when the checkbox is "checked". |
It can be enabled and disabled using the Enabled input:
@include "../../shared-props/inputs/_enabled.md"
The Checkbox node has a set of label properties that can be set:
| Data | Description |
|---|---|
| Enable Label | Sets whether the label is visible or not. |
| Text Style | Set an existing text style to this node, or create a new text style from the current properties. |
| Label | A text string that will be shown as the label on the button. |
| Spacing | The spacing between the label and the checkbox. |
Similarly, it has a set of icon properties:
| Data | Description |
|---|---|
| Enable Icon | Sets whether the icon is visible or not. |
| Type | Use this to set if you want to use a predefined icon or a custom image from the project folder. |
| Source | Where to get the icon. |
| Placement | Sets whether the icon should be to the left or to the right of the Label |
| Size | The width of the icon in px. |
| Color | Sets the color of the icon. Only visible if Type is set to icon. |
| Signal | Description |
|---|---|
| Check | Reflects the same action as the user checked the Checkbox. |
| Uncheck | Reflects the same action as the user unchecked the Checkbox. |
Visual
This node supports the following Visual Input Properties:
- Margin
- Alignment
- Dimensions
- Layout, Position
- Style
- Border Style
- Corner Radius
- Box Shadow
- Placement
- Other
- Advanced HTML
Outputs
The main output of the Checkbox node is the Checked output.
| Data | Description |
|---|---|
| Checked | A boolean output that is true when this checkbox control is checked and false if not. This is useful when using this control as a base for your own component that will represent visually that it is checked. |
It also features a set of signals:
@include "../../shared-props/outputs/_control-events.md"
States
Apart from triggering signals the Checkbox node also notifies of its state through data outputs:
@include "../../shared-props/outputs/_control-states.md"
Visual
This node supports the following Visual Output Properties:
@include "../../shared-props/inputs/_visual-input-properties.md"
@include "../../shared-props/outputs/_visual-output-properties.md"
