Array Filter

This node creates a new array containing only items that match specific criteria.

The Array Filter node provides powerful filtering, sorting, and pagination capabilities for collections.

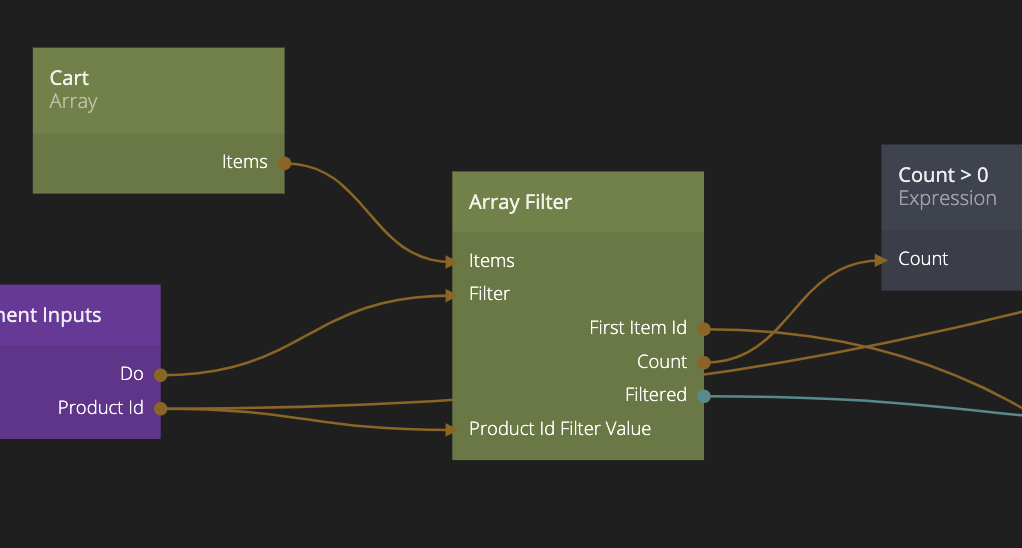

The Array Filter node takes an input array and applies a set of rules to produce a new, filtered array. It can filter by property values (equals, greater than, regex, etc.), sort the results, and limit the number of items returned. This is essential for search functionality, lists, and data management.

Inputs

General

Data	Description
Items	The source array to filter.
Enabled	If false, the node passes the original array through without filtering. Default: true.

Filter

Data	Description
Filter	A list of property keys to filter by. Adding a key here creates dynamic inputs for that filter (e.g., "Type", "Op", "Value").

Sort

Data	Description

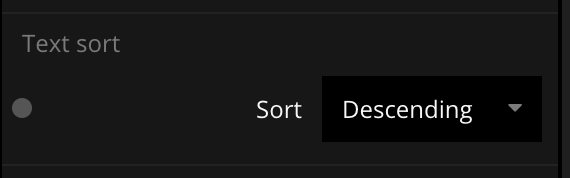

Sort	A list of property keys to sort by. Adding a key creates dynamic inputs to choose Ascending/Descending.

Limit

Data	Description
Use limit	Boolean. If true, enables Limit and Skip inputs.
Limit	Max number of items to return.
Skip	Number of items to skip (for pagination).

Actions

Signal	Description
Filter	Manually triggers the filter operation. If not connected, the node updates automatically when inputs change.

Outputs

General

Data	Description
Items	The resulting filtered array.
Count	The number of items in the filtered result.
First Item Id	The ID of the first item in the filtered result.

Events

Signal	Description
Filtered	Triggered when the filter operation completes.

Usage

Dynamic Filtering Ports

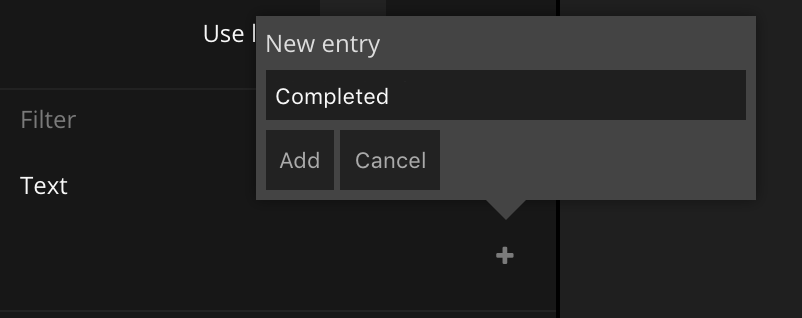

When you add a property name (e.g., "category") to the Filter list input, the node adds three new inputs:

1. Type: String, Number, or Boolean.
2. Op: The operator (Equals, Not Equals, Greater Than, Regex, etc.).
3. Value: The value to compare against.

Example Use Cases

1. Search Bar:
   • Add "name" to Filter.
   • Set Op to "Matches RegEx".
   • Connect Search Input text to Value.
2. Price Range:
   • Add "price" to Filter.
   • Set Op to "Less than".
   • Set Value to 100.
3. Pagination:
   • Enable Use limit.
   • Set Limit to 10.
   • Connect a variable (Page * 10) to Skip.

Detailed Behavior

1. Auto-Update: Unless the Filter signal input is connected, the node reacts immediately to changes in the source Items or any filter parameter.
2. Chaining: Operations happen in order: Filter -> Sort -> Skip -> Limit.
3. Regex: The "Matches RegEx" operator allows for partial string matching (like "contains"). Use the "Case sensitive" option for precision.

Troubleshooting

• No Results: Check your filter logic. Ensure the property names in Filter exactly match the keys in your object data.
• Wrong Sort: Ensure the property you are sorting by actually exists on the objects.
