Button
This node places a customizable button in the visual tree.
The button has a Click signal that you can use to trigger actions.
This control contains all logic such as accessibility etc. It can be styled in via it's properties. Use variations to create different types of buttons
Inputs
The Button can be enabled and disabled using the Enabled input:
@include "../../shared-props/inputs/_enabled.md"
The Button node has a set of label properties that can be set:
| Data | Description |
|---|---|
| Enable Label | Sets whether the label is visible or not. |
| Text Style | Set an existing text style to this node, or create a new text style from the current properties. |
| Label | A text string that will be shown as the label on the button. |
Similarly, it has a set of icon properties:
| Data | Description |
|---|---|
| Enable Icon | Sets whether the icon is visible or not. |
| Type | Use this to set if you want to use a predefined icon or a custom image from the project folder. |
| Source | Where to get the icon. |
| Spacing | The spacing between the text and the icon. |
| Placement | Sets whether the icon should be to the left or to the right of the Label |
| Size | The width of the icon in px. |
| Color | Sets the color of the icon. Only visible if Type is set to icon. |
Visual
This node supports the following Visual Input Properties:
- Margin
- Padding
- Alignment
- Dimensions
- Layout, Position
- Text Styles
- Style
- Border Style
- Corner Radius
- Box Shadow
- Placement
- Dimension Constraints
- Other
- Advanced HTML
Outputs

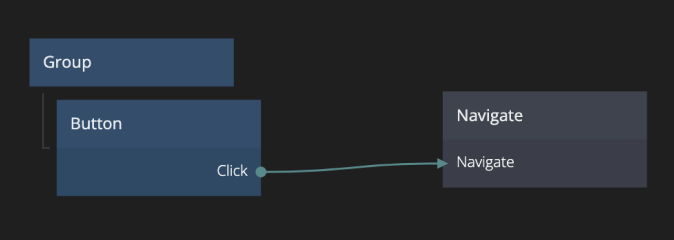

The main output for the button is the Click signal:
| Signal | Description |
|---|---|
| Click | A signal is sent on this output when the button is clicked. |
It also features a set of more in depth signals:
@include "../../shared-props/outputs/_control-events.md"
States
Apart from triggering signals the Button node also notifies of its state through data outputs:
@include "../../shared-props/outputs/_control-states.md"
Visual
This node supports the following Visual Output Properties:
@include "../../shared-props/inputs/_visual-input-properties.md"
@include "../../shared-props/outputs/_visual-output-properties.md"
